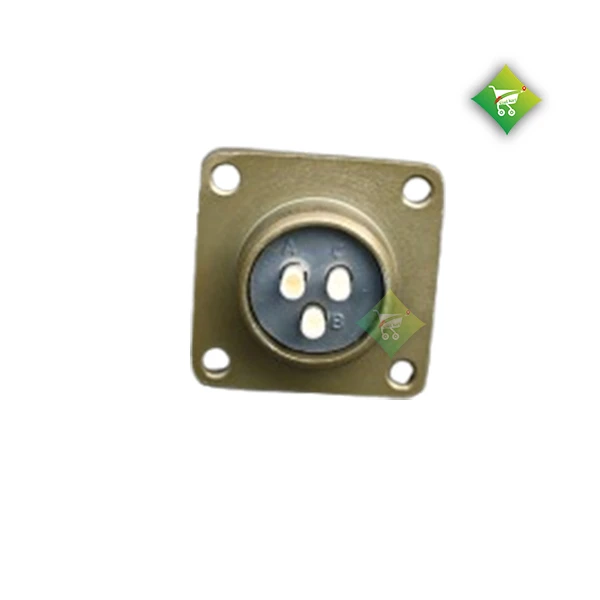

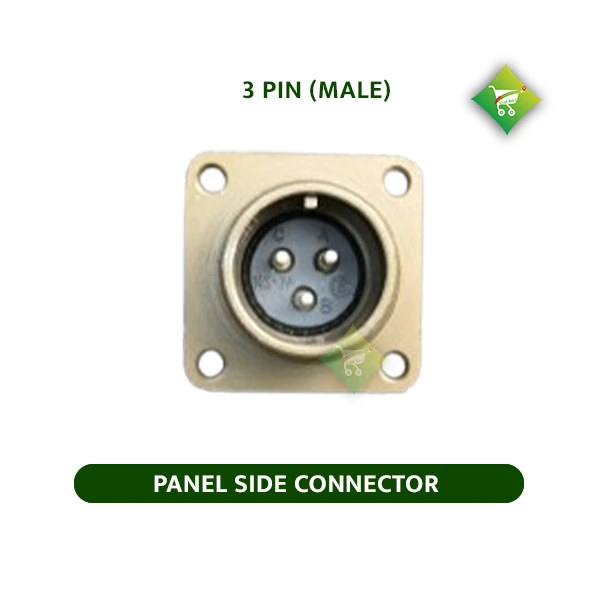

Panel Side 3 Pin Connector (Male)

(0) 0 Reviews 0 Orders 0 Wish listed

₹650.00 ~~₹700.00~~

Quantity :

Total price :

(Tax : )

Purpose: This connector serves as an interface for connecting electrical components within the control box to external devices, such as sensors, motors, or other control systems. It facilitates the transmission of power, data, or feedback signals between the control box and other parts of the equipment.
Pin Configuration: A 3-pin connector will typically consist of three contacts:
1. Pin 1: Often used for power supply to the connected device or component.
2. Pin 2: Typically used for grounding or common return, ensuring safety and proper function by stabilizing the electrical system.
3. Pin 3: Used for signal transmission, sending data or feedback (such as position information from a sensor or control signal to a motor).
Location: The "Panel Side" aspect of this connector means that it's located on the control box or panel, which is where an operator would interface with the equipment for adjustments or monitoring. This location ensures the connector is accessible for maintenance or for connecting/disconnecting components.
Design & Construction: The connector is designed for secure, reliable connections, with durable materials used to ensure proper electrical conductivity and protection against wear, corrosion, and environmental factors like moisture. The pins are typically made of conductive metal (e.g., brass or copper) and are housed in a plastic or rubber casing to prevent short-circuiting or physical damage.
